EVEVSPOWER boost converters step a lower DC input up to a regulated higher output using external-MOS synchronous or non-synchronous designs. Efficiency reaches up to 98%, and synchronous models support bypass pass-through when the input already exceeds the target output.
Key Features
- Efficiency up to 98% with synchronous rectification
- Bypass function: input above output passes straight through
- Wide input tolerance for portable, vehicle and solar applications

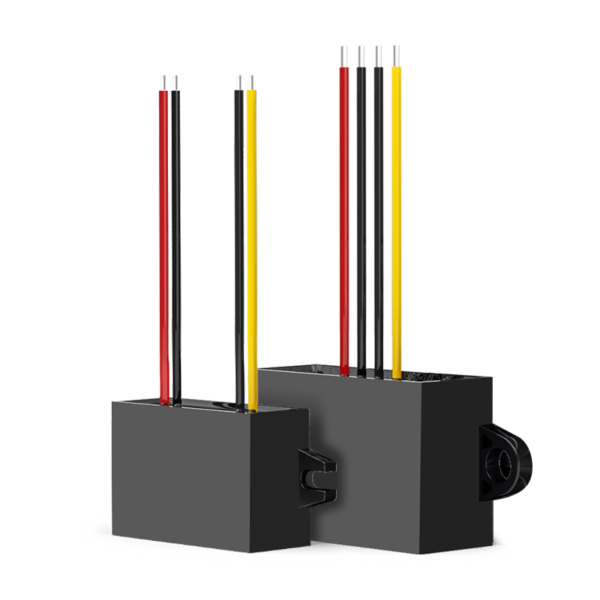

- J (plastic), F (aluminum) and Y (die-cast) housing options
Contact us for the datasheet and sample.
Boost Specifications (J2 / J3 / F150 / F220 / Y)
| Input voltage | 5–60V DC (min 5V) |
| Output voltage | 6–80V DC |
| Output current | up to 5A (J series) / up to 60A (F series) |
| Max power | 120W peak (J3) / 1000–1400W (F150/F220) |
| Efficiency | up to 96% (synchronous rectification); non-synchronous models 93–95% |
| Bypass | Non-synchronous models pass through when input exceeds output |
| Protection | Output anti-backfeed, input soft-start, under-voltage, over-current, short-circuit, over-temperature |
| Ingress protection | IP67 (fully potted) |
| Operating temperature | -40°C to +85°C (F/Y), -40°C to +65°C (J) |
| Housing | Plastic J, aluminum F, die-cast Y |
Full model matrix and datasheets available on request — contact us.
