EVEVSPOWER supplies the building blocks that make custom converters possible: C, D, F aluminum-profile and Y die-cast housings, plug-in inductor and transformer components, Schottky diodes and electrolytic capacitors — all matched to our module families.
Key Features
- Housings: C2/C3/C4, D25/D50/D100, Y1–Y4, F150/F220
- Plug-in magnetic components and transformers
- Schottky diodes and electrolytic capacitors for power stages
- Custom development and material processing supported
Contact us for the accessory list and samples.

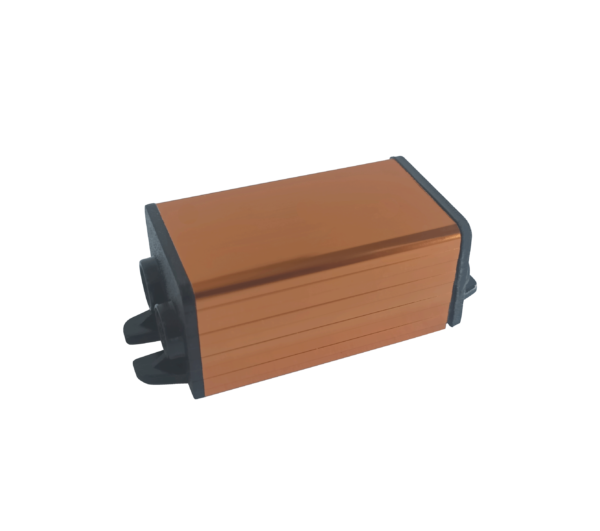

Housing Dimensions (C / D / Y series)
| C2 aluminum | 57.5 × 24.5 × 20 mm |
| C3 aluminum | 75.5 × 24.5 × 20 mm |
| C4 aluminum | 58 × 29 × 20 mm |
| D25 aluminum | 25 × 52.5 × 15 mm |
| D50 aluminum | 50.5 × 52.5 × 15 mm |
| D100 aluminum | 100 × 52.5 × 15.5 mm |
| Y1 die-cast | 58 × 64.5 × 21.5 mm |
| Y2 die-cast | 74.5 × 74 × 31 mm |
| Y3 die-cast | 101 × 79 × 39 mm |
| Y4 die-cast | 126 × 105 × 52 mm |
| Materials | Aluminum 6063/6061 (profile), ADC12/A380 (die-cast) |
| Finishing | Anodizing or painting optional; high impact strength |
Full model matrix and datasheets available on request — contact us.
