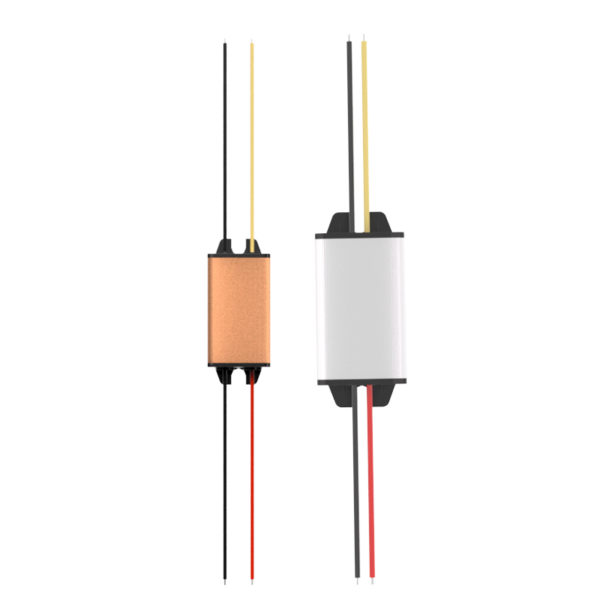

Low-power buck converters across the J, C, D and Y families are optimized for battery-backed and always-on systems where standby current matters. They keep power draw to a minimum while delivering stable regulated output.
Key Features
- Ultra-low quiescent current for battery applications
- Multiple housing options: plastic, aluminum, die-cast
- Stable output across light and moderate loads
- Wide input range for multi-voltage systems
Contact us for the datasheet and sample.
Low-Power Buck Specifications (J / C / D / Y)
| Input voltage | 8–60V DC |
| Output voltage | 3–24V DC |
| Output current | 0–10A |
| Quiescent current | <1mA (static) |
| Efficiency | ≥95% (full load) |
| Ripple | Low output ripple for sensitive circuits |
| Ingress protection | IP67 (fully potted) |
| Cooling | Natural convection |
| Operating temperature | -40°C to +65°C |
| Housing | Plastic ABS (compact) or aluminum |
Full model matrix and datasheets available on request — contact us.
