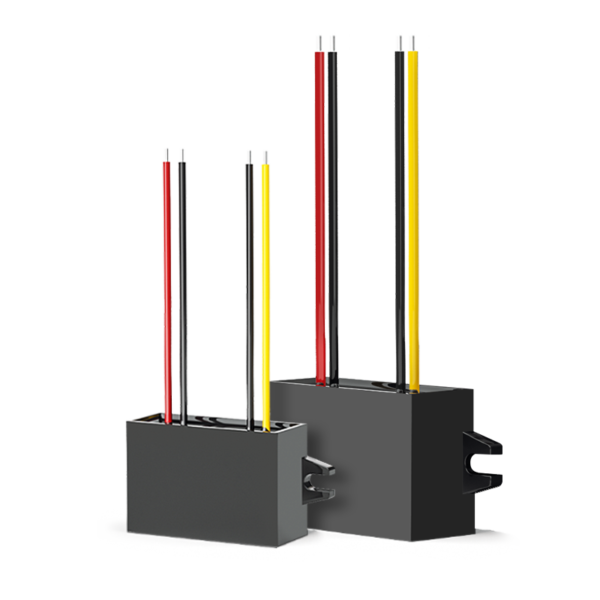

Motor-specific buck converters (J, C, D, Y series) are designed for motor and actuator loads that draw high inrush current and vary rapidly. Output stays stable even as the load changes, protecting sensitive controller electronics.
Key Features
- Inrush-tolerant design for motor starting
- Stable output under rapidly changing loads
- Wide input range for vehicle and industrial rails
- Multiple housing options including die-cast
Contact us for the datasheet and sample.
Motor-Specific Buck Specifications (J1 / J2)
| Input voltage | 8–36V DC |
| Output voltage | 3–20V DC |
| Output current | 0–3A (J1) / 0–5A (J2) |
| Max power | 36W |
| Efficiency | up to 93% |
| Load type | Inductive (motor / actuator), short-to-ground tolerant long-term |
| Derating | Power derated at large input-output differential (thermal protection) |
| Ingress protection | IP67 (fully potted) |
| Cooling | Natural convection, plastic ABS housing |
| Operating temperature | -40°C to +65°C |
Full model matrix and datasheets available on request — contact us.
