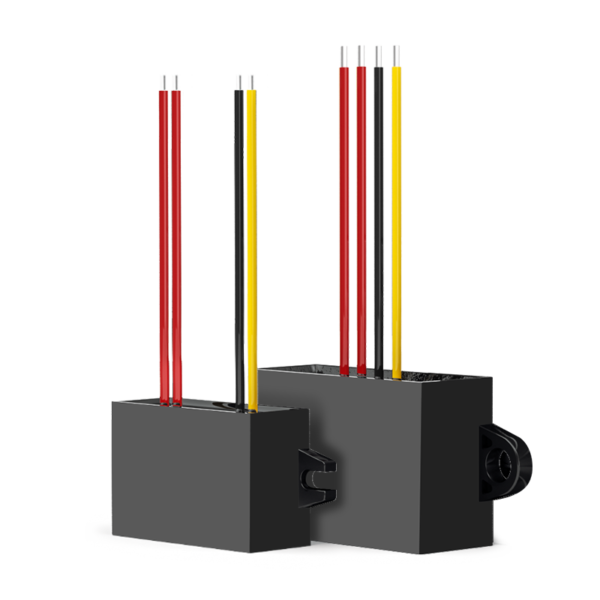

EVEVSPOWER non-isolated AC-DC converters accept a wide AC input (8–60V) and output up to 500W. They also accept DC input without polarity concerns, making them flexible building blocks for small appliances, consumer electronics, smart-home sensors and small industrial control modules.
Key Features
- Wide AC input range: 8–60V AC
- Output power up to 500W
- Polarity-free DC input operation
- High efficiency, low heat, stable reliability
Contact us for the datasheet and sample.
Non-Isolated AC-DC Specifications (J2 / J3 / Y2 / Y3)
| Input | 14–42V AC (J series); Y series extended |
| Output | 5–36V DC regulated |
| Output current | 0–5A |
| Max power | 50W (J2) / 60W (J3) |
| DC input | Polarity-free DC input accepted |
| Efficiency | High efficiency, low heat |
| Protection | Under-voltage, short-circuit, over-current, over-temperature, over-voltage |
| Ingress protection | IP67 (fully potted) |
| Operating temperature | -40°C to +65°C (J) |
| Housing | Plastic J2/J3, die-cast Y2/Y3 |
Full model matrix and datasheets available on request — contact us.
