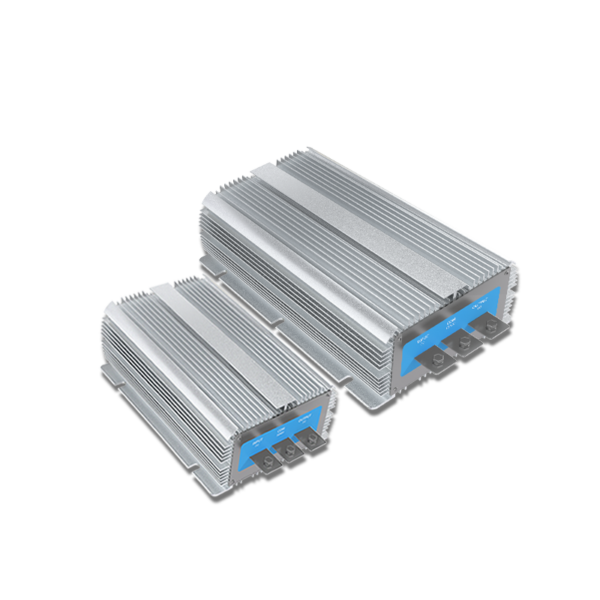

The F series (F150, F220) aluminum-profile buck converters extend the portfolio to medium-power DC rails with higher current capability. They suit LED systems, communication equipment and industrial power distribution where both size and heat matter.
Key Features
- Extended current capability in a compact aluminum housing
- Wide input tolerance and low output ripple
- Efficient thermal path for continuous operation
- Protection against over-current and over-temperature
Contact us for the datasheet and sample.
F Series Specifications (F150 / F220)
| Input voltage | 8–100V DC |
| Output voltage | 3–60V DC |
| Output current | 90A (F150) / 120A (F220), typical; peak higher |
| Max power | 1000W (F150) / 1400W (F220) |
| Efficiency | up to 97% |
| Load | Inductive loads supported (high peak current) |
| Protection | Under-voltage, over-current, short-circuit, over-temperature |
| Ingress protection | IP67 (fully potted) |
| Cooling | Natural convection, aluminum profile |
| Operating temperature | -40°C to +85°C |
| Housing | Aluminum profile F150 / F220 |
Full model matrix and datasheets available on request — contact us.
