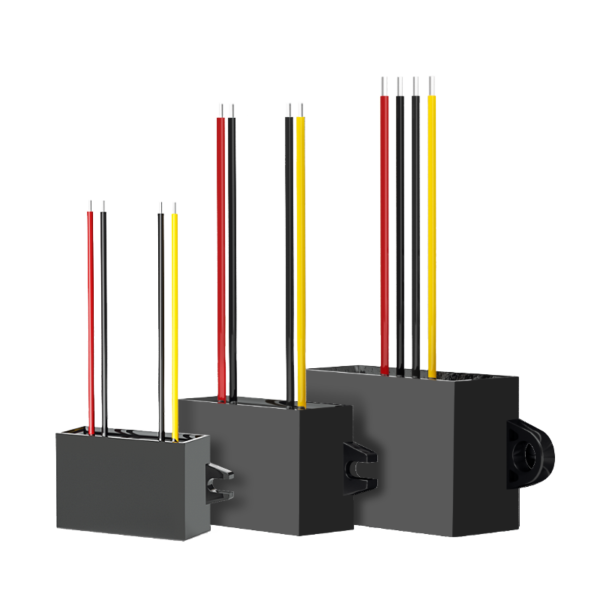

The J series is EVEVSPOWER’ plastic-housed buck converter family (J1, J2, J3). These compact modules step a wide DC input down to a stable regulated output with low quiescent current and adjustable soft-start, making them a dependable choice for low-power rails in industrial equipment, home appliances, portable electronics and communication devices.
Key Features
- Wide input voltage range (typically 8–80V DC)
- High conversion efficiency with low standby power
- Adjustable soft-start; short-circuit hiccup / constant-current modes optional
- Compact plastic housing, easy mounting
Contact us for the datasheet and sample.
J Series Specifications (J1 / J2 / J3)
| Input voltage | 8–100V DC (24/48/60/80V families) |
| Output voltage | 3–60V DC |
| Output current | 0–10A (built-in MOS ≤5A, external MOS ≤10A, peak 15A) |
| Max power | 120W |
| Efficiency | up to 96% (peak) |
| No-load current | <2mA (built-in MOS) |
| Protection | Input under-voltage, output over-current, short-circuit, over-temperature |
| Reverse polarity | Built-in MOS series, input ≥48V |
| Ingress protection | IP67 (fully potted) |
| Cooling | Natural convection |
| Operating temperature | -40°C to +65°C |
| Housing | Plastic ABS (J1 small, J2 medium, J3 large) |
Full model matrix and datasheets available on request — contact us.
